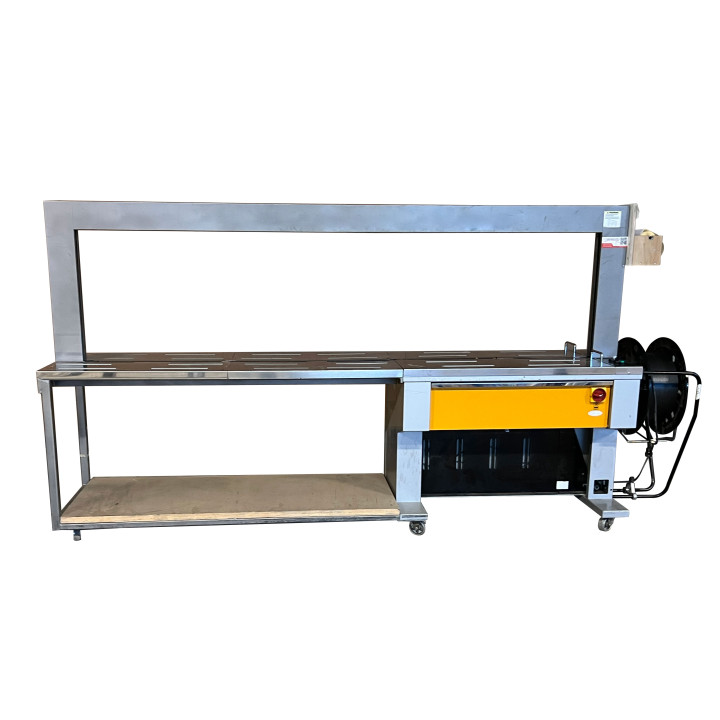

STEP TP-6000CE1 2650x600-12mm
STEP TP-6000CE1
STEP TP-6000CE1
STEP TP-6000CE1

STEP TP-6000CE1 Strapping Machine with arch 850x600 -12mm

Reference 41100342 Items available 0
$3,179.00

Automatic Strapping machine with arch, for 9-12-15,5mm PP strap on Ø200 core. 26 straps per minute. MADE IN TAIWAN - Quality Machine

For back order
Delivery date will be informed on order confirmation
Share

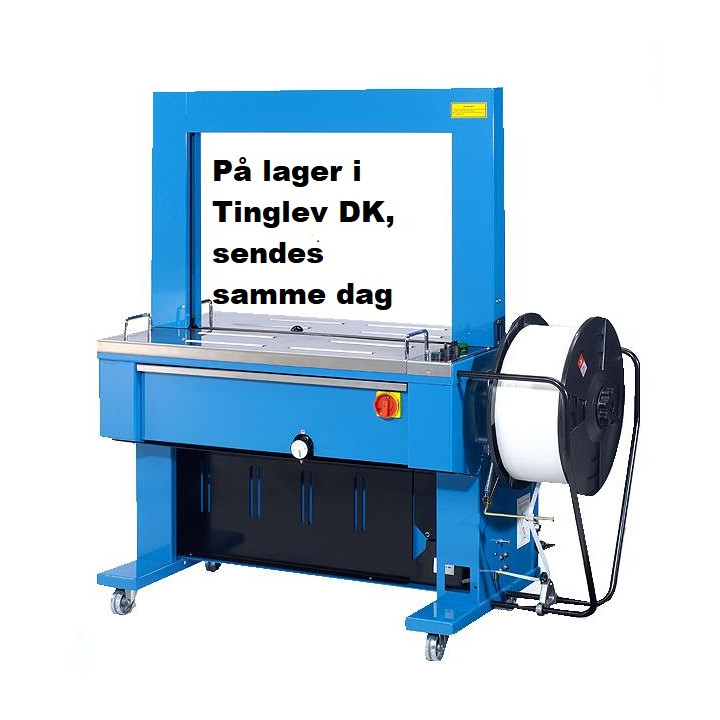

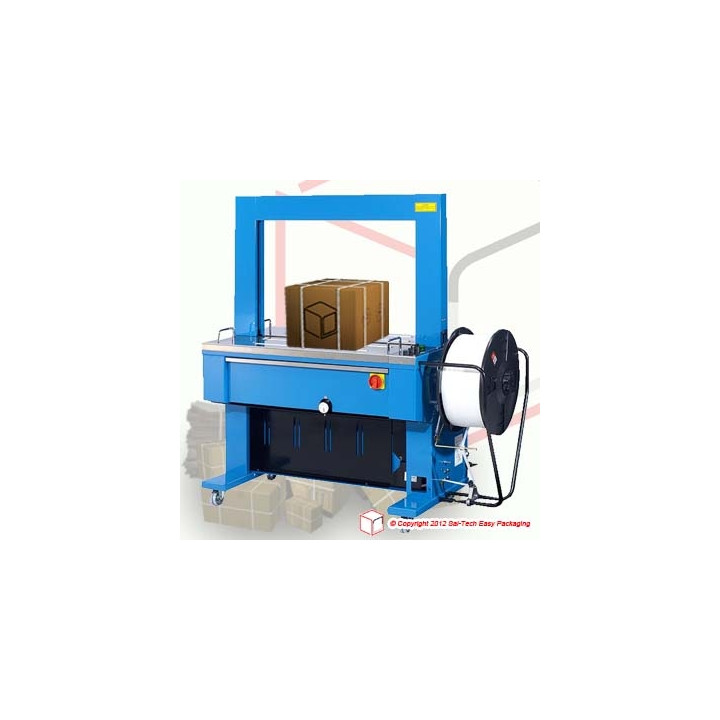

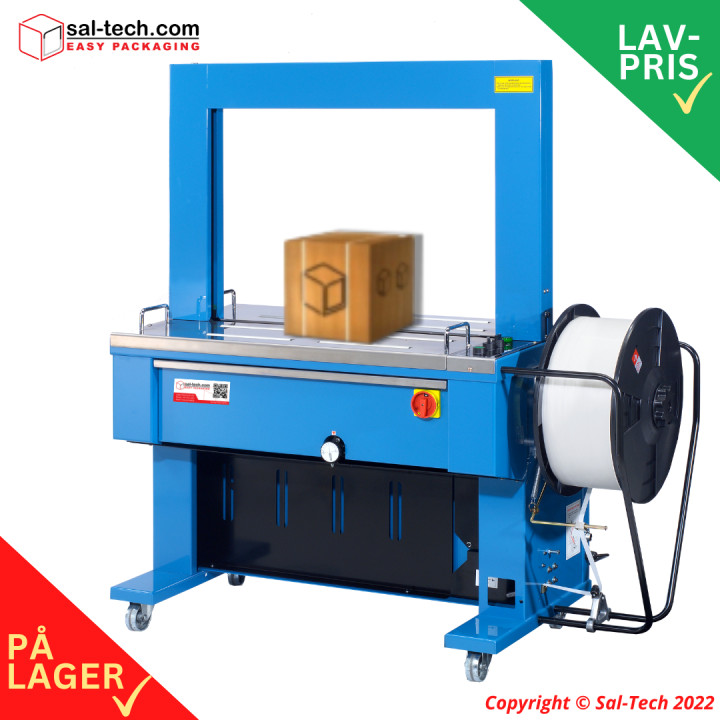

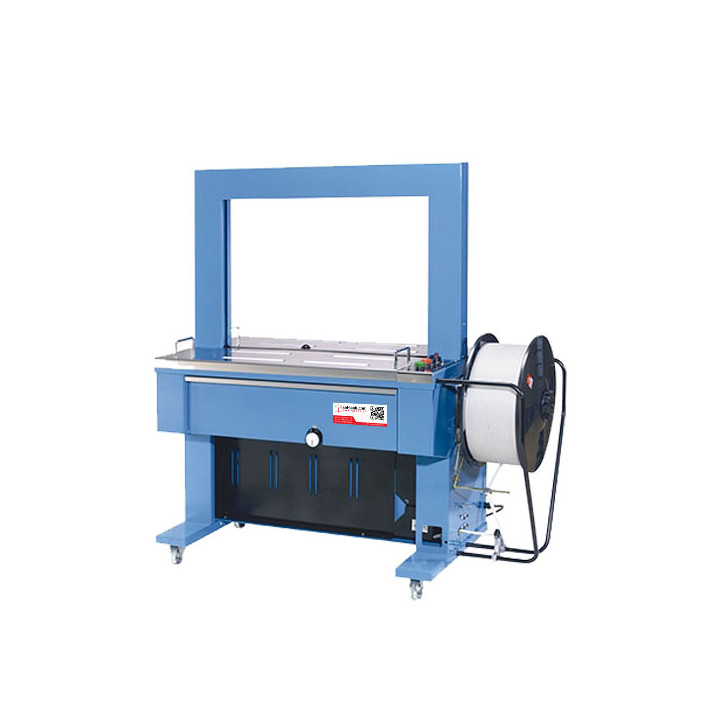

Arch Strapping Machine STEP TP-6000
Automatic Strapping Machine for 9-12-15.5mm PP Strap

An automatic strapping machine built for 9mm, 12mm, and 15.5mm PP strap. Manual adjustment on the mechanical tensioning system delivers high tension without damaging the strap, and it runs on a single-phase electrical connection to local standard.

The standard arch size is 850mm x 600mm, set for 12mm strap out of the box — 9mm and 15.5mm settings need to be ordered separately or rebuilt from stock. Good value for the price.

Specifications (Standard)
Strap Tension 10kg – 70kg
Conveyor Speed 26 straps/minute
Table Height 810mm
Net Weight 220kg
Electrical Requirements Single-phase, per local standard
Arch Size Availability
Height \ Width 850 1050 1250 1450
400 Optional Optional Optional Optional
600 Standard Available Available Available
800 Available Available Optional Optional
1000 Available Optional Optional Optional
1200 Available Optional Optional Optional
  • Reference41100342
41100342 TP-6000CE1 Layout.dwgOpen or download document Download 41100342 TP-6000CE1 Layout.pdfOpen or download document Download STEP TP-6000 Manual.Open or download document Download
