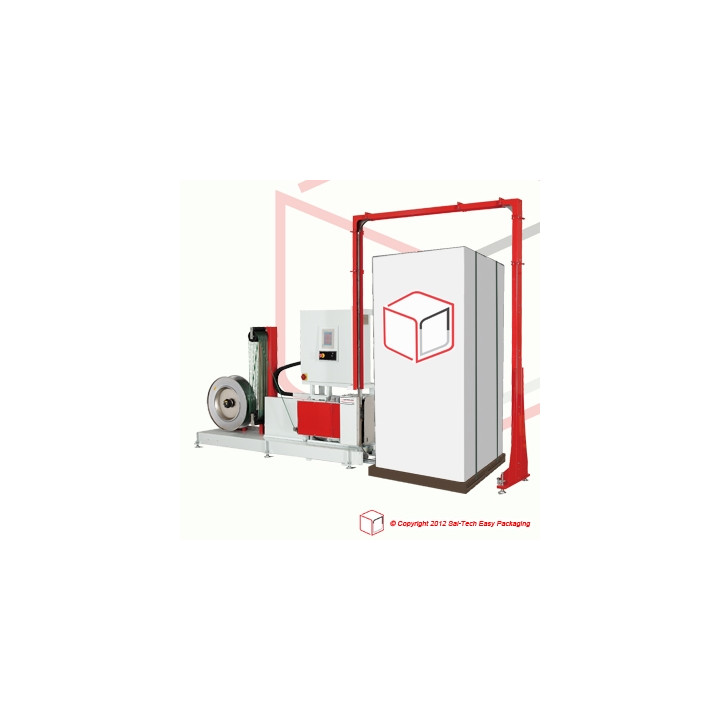

STEP TP703 Pallet Strapping Machine Series

STEP TP-733V (VM, VLM) Pallet Strapping Machine Series POLLUX

Reference 41203120 Items available 0 Condition New

$159,990.00

STEP TP-733V (VM, VLM) is a series of strapping equipment that is appropriate for vertical pallet packaging requirements. Designed to enhance strap packing with its innovative features, easy maintenance and simple user interface.

Project machine to be full specified before production to order

A fully automatic series of strapping vertical pallets with the use of PP and/or PET straps. STEP TP-733V (VM, VLM) models are in for a neatly sealed pallets promoting a professional look and feel of palletized goods. Certainly bringing a growth when it comes to performance, professionalism, efficiency, and innovation.

Taking you to the next level with its:

1. Strapping Head: Able to stand pressure from continuous operation, this strapping head design is tough yet easy to maintain
2. Touch Panel: A Siemens PLC Control and Touch Panel promotes a user friendly approach for a more basic adjustment, troubleshooting, and guideline when it comes to operation of machine
3. Weld Sealing: An advanced Friction Weld Sealing Technology for securing seal is tight plus no fumes and odor free.
4. Sealing and Cooling Time: Both sealing and cooling time are modifiable as to business needs
5. Arch: Installed to make an easier change in arch size, as required for goods to perfectly fit in
6. Index Strapping Head: Movable when strapping so to guarantee that strapping is done as closely as possible with a higher suppression efficiency
7. Movable Strap Lance

Model		STEP TP-733VLM	STEP TP-733VM	STEP TP-733V
Electrical Requirements		220V/380V/400/415V, 50/60Hz, 3PH
Strapping Capacity		Approx. 11.5 sec./cycle	Approx. 8.5 sec./cycle	Approx. 8 sec./cycle
		72 pallets/hour (2 parallel straps)	78 pallets/hour (2 parallel straps)	90 pallets/hour (2 parallel straps)
		30 pallets/hour (2 pair straps intersected)	31-33 pallets/hour (2 pair straps intersected)
Strap Requirement*	Width	PET/PP Strap: 9*, 12, 15.5, 19 mm
	Thickness	PET Strap: 0.5-1.0mm ; PP Strap: 0.7-1.05mm
Tension Range	Standard	1100 N-3200 N (110 kg-320 kg)
	Option	200 N-1200 N (20 kg-120 kg)
Dimensions (W) × (D) × (H) (standard arch size 1400W x 2450H mm)		4945W x 676D x 2549H mm	4528W x 676D x 2549H mm	3688W x 676D x 2549H mm
Machine Net Weight		445 kg
Minimum Package Size	9 /12 /15.5mm strap	400W × 662H mm	400W × 562H mm	400W × 300H mm
	19mm strap	400W x 712H mm	400W x 612H mm	400W x 350H mm
Maximum Package Size		(Arch width-100)W × (Arch height-150)H mm	(Arch width-100)W × (Arch height-235)H mm	(Arch width-100)W × (Arch height-350)H mm
Index Strapping Head Stroke	Standard	max. 500mm		-
	Option	max. 700mm
Strap Core Inner Diameter		406mm
Power Consumption		1.35 kW		0.9 kW
Environment Temperature		0 ~ 40℃ (32 ~104℉)
*9mm width is limited to 0.6-1.0mm thickness PET strap
*Please make sure the strap thickness is more than 0.7mm when applying PET strap to arch size at 3250(H) mm or 2000mm(W) x 2850(H) mm
*The strap width is limited to 15.5 / 19mm and thickness should be more than 0.9mm when applying PP strap to arch size at 3250(H) mm
*Maximum tension and strapping speed are affected by strap type, strap width, strap thickness, and strap quality.

Air consumption of Top Press (Option)
	200kg(80mm)	500kg(125mm)
1650H	34.4 L/cycle	84.8 L/cycle
2050H	45.8 L/cycle	113.1 L/cycle
2450H	57.3 L/cycle	141.4 L/cycle
2850H	68.8 L/cycle	169.7 L/cycle

Options:
• Floating Head
• Top Press
• Failure Indicator
• Operation Desk (standing)
• Strap Dispenser towards transport track
• Tension of 200N – 1200N (20kg – 120kg)

Available in Different Models

STEP TP-733V - closed strap track, fixed strapping head
STEP TP-733VM - closed strap track, index strapping head
STEP TP-733VLM - with movable lance, index strapping head
