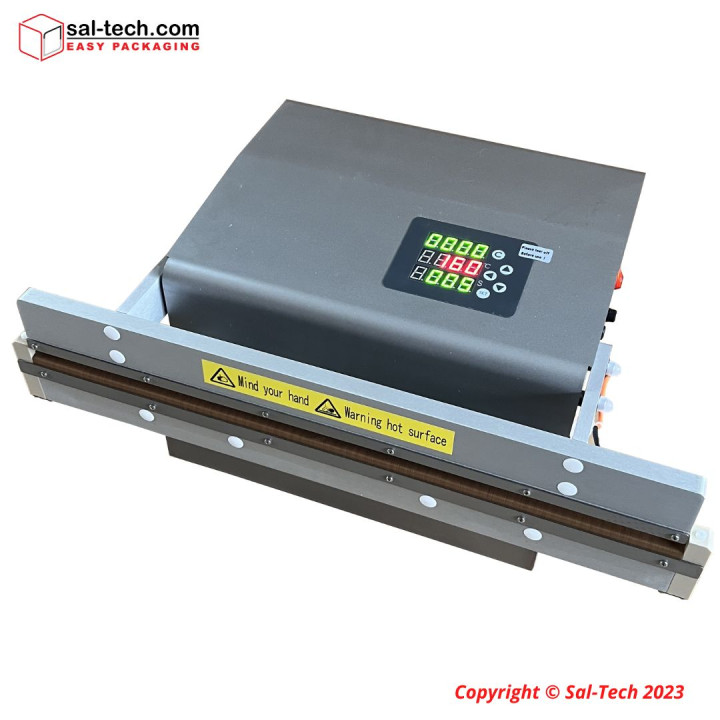

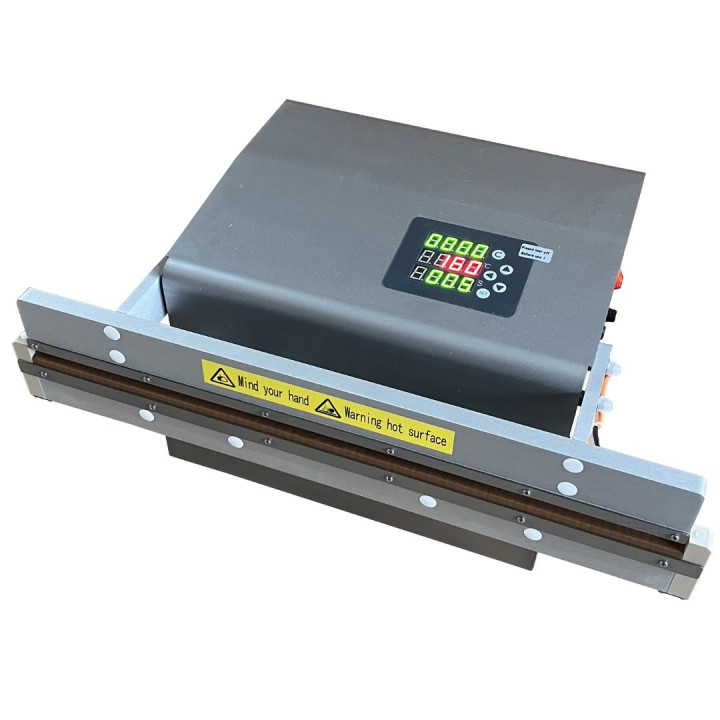

STEP EF803-500E Pharmaceutical Heat Sealer

STEP EF803-500E Pharmaceutical Heat Sealer

Reference 49860040 Items available 0 Condition New

$37,881.00

STEP EF803-500E Pharmaceutical Heat Sealer is designed particularly for heat sealing materials such as breathing bags, plastic films, and their composite films as packaging materials that must be heat-sealed at the manufacturing site.

Out-of-Stock

Features:

• Automatic microcomputer temperature control
• Digital tube display
• Pulse heating
• Cooling function
• Motor (cylinder) drive
• Pedal control
• Accurate temperature control
• High heat sealing strength, stable heat sealing quality
• Easy operation, and dependable work

uOpvUVm_kq4L1q6bX_8qaMie4pOfzEgv_WGChOyA

sbh5X16fImYOlBoLWJjT63XhSgBnQCREdwZ9YVYY

SPECIFICATIONS
Model	STEP EF803-500E Pharmaceutical Heat Sealer
Control system	LED two-color highlight three-row digital tube
Heat sealing edge	0～35 mm
Heat sealing width	3 mm
Heat sealing length	650 mm
Working temperature	80～200 ℃ adjustable
Cooling time	1～30 seconds adjustable
Packing speed	<5 (times/min)
Temperature control accuracy	±5℃
AC power supply	220V±10% 50Hz
Maximum current	15 A
Air pressure	0.5MPa±10%
Filtration accuracy	used for food, medicine, electronics, tobacco and alcohol, and air bearings, etc. <5μm; Other uses <10μm
Air source pipe diameter	φ6
Drive mode	pneumatic (standard A), electric (optional D)
Dimensions	732×242×157 (length×width×height) mm
Storage environment Temperature	10～40℃;
Humidity	≤90% (R.H);
Atmospheric pressure	50KPa～106KPa
Item Number	49860040
