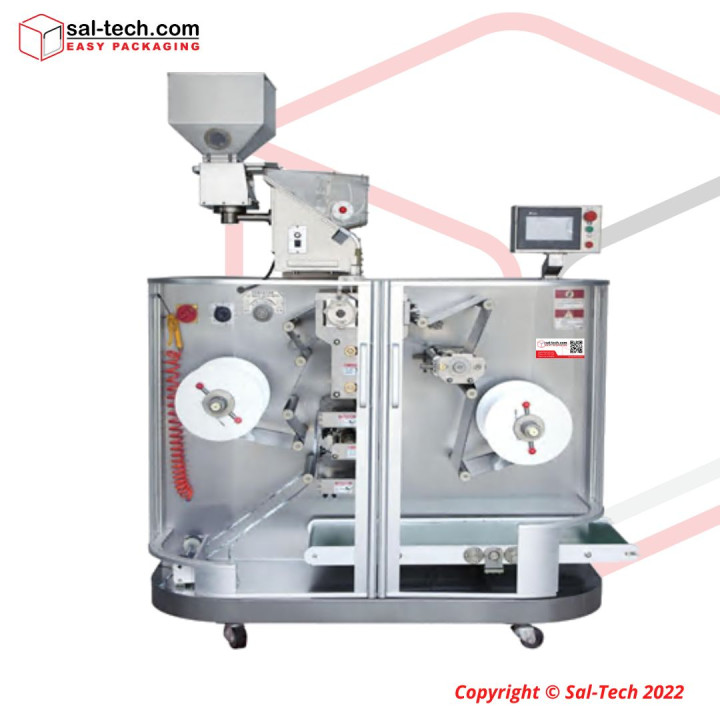

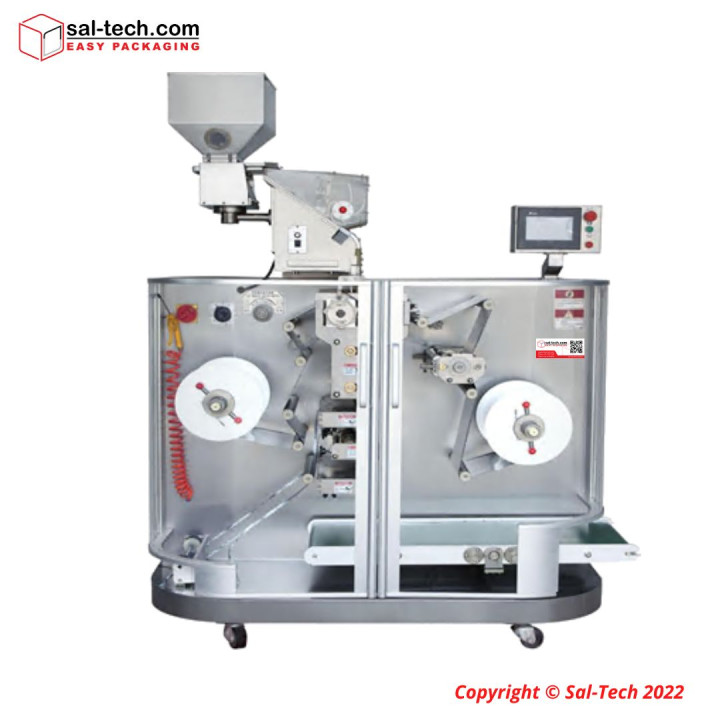

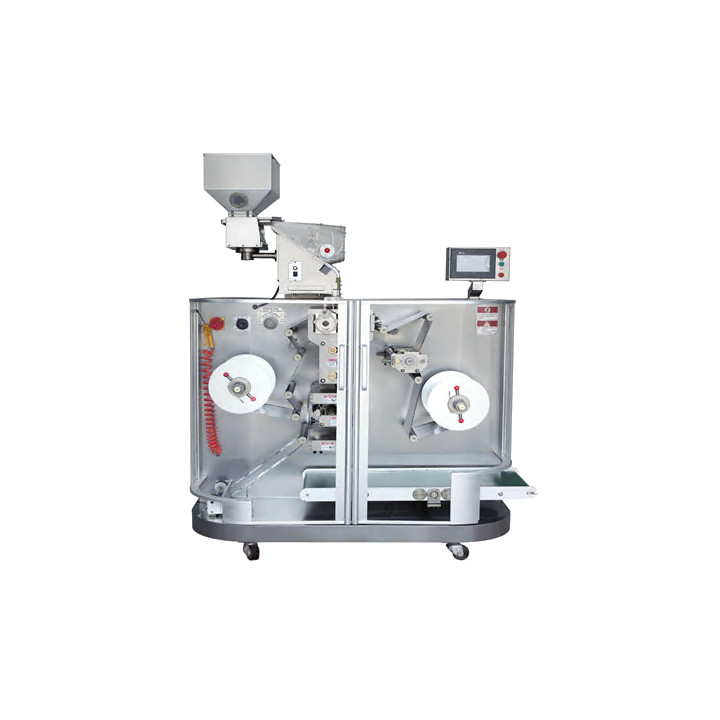

STEP UN-350B Tablet Strip Packaging Machine images
STEP UN-350B Tablet Strip Packaging Machine is used to package tablets, capsules, and electronic components in the pharmaceutical industry.
It uses frequency control to adjust travel at will, enhance vibration across the entire column feed mechanism, and optical monitoring devices, and can auto-complete filling, sealing, tangent, batch number, and cut at high speeds.
The complete system employs a programmable controller and touchscreen to control each action point.
Features:
1. Advanced Design
2. High Productivity
3. Low Volume
4. Easy to Use
| SPECIFICATIONS | |
| Model | STEP UN-350B Tablet Strip Packaging Machine |
| Capacity | 30,000- 90,000pcs/hour |
| Packaging Area | 350mmx any length |
| Material Roll DIA | 300mm |
| Machine Dimension (LxWxH) | 1600x950x1900mm |
| Packaging Dimension (LxWxH) | 1800x1200x2100mm |
| Punch Frequency | 30~80 times/ min |
| Main Motor Power | 0.75KW |
| Total Power | 4KW |
| Air Compressor | 0.5Mpa |
| Gross Weight | 1200kg |
| Item No. | 36003010 |
