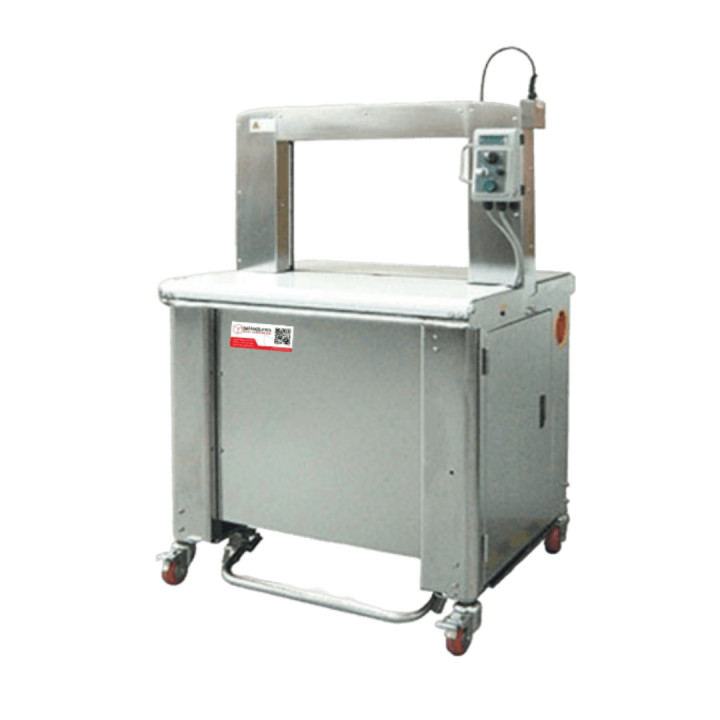

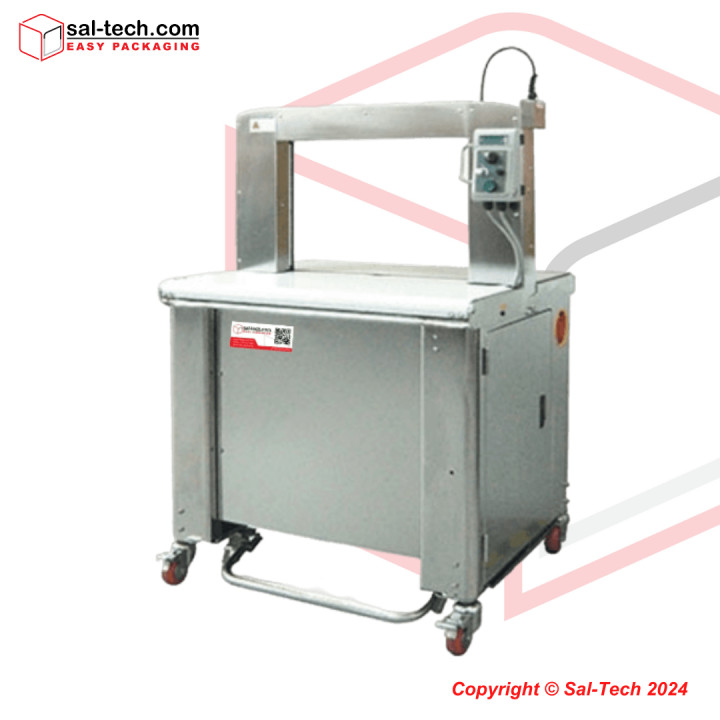

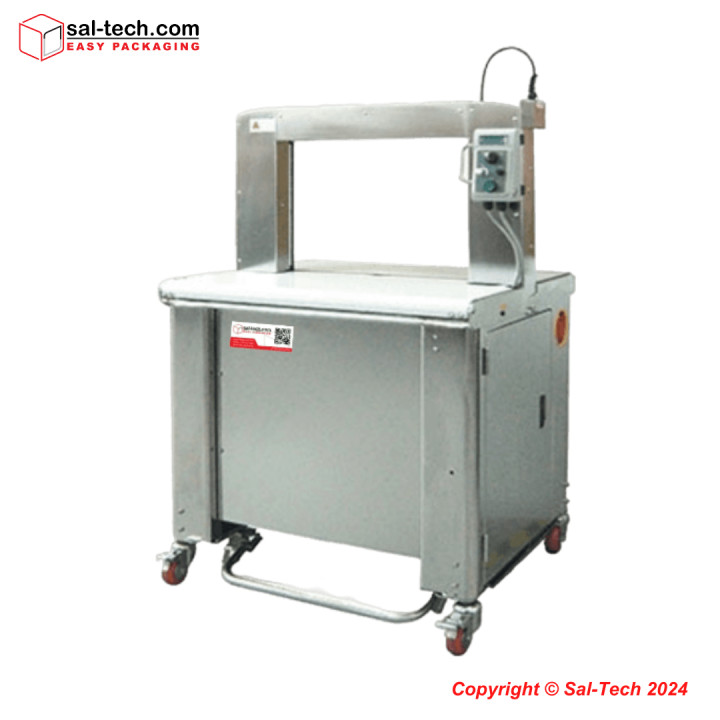

STEP TP-702RSS 5mm Mercury Strapping Machine

STEP TP-702RSS Mercury Strapping Machine Stainless Steel

Reference 41190605-A55 Items available 0 Condition New
$59,990.00

The STEP TP-702RSS is a high-speed automatic strapping machine with a stainless steel frame. It delivers dependable high speed performance for tiny or round package applications and is suited for damp working environments such as meat, seafood, poultry, and agricultural processing operations.

Strap width
On Backorder
Delivery date will be informed on order confirmation
Share
Mercury Strapping Machine STEP TP-702RSS
Automatic Strapping Machine with Stainless Steel Frame
Key Features
Robust & Compact Strapping Head — A mechanical head built for durability without adding bulk.
Free Access to Strap Guides — Patented design for easier access during setup and maintenance.
Waist-High Quick Coil Change — Patented design that keeps coil swaps at a comfortable height.
Waist-High Auto Strap Feeding — Feeds strap automatically at the same comfortable height.
Turnable Control Panel — Rotates to face the operator from any working angle.
Auto Strap Ejector — Clears the finished strap automatically after each cycle.
Dispenser Release Switch — Quick manual release for the strap dispenser.
Sensor-Controlled Heater — Regulates sealing heat automatically for consistent results.
Low Voltage — Runs on a low-voltage circuit for added safety.
Strap End Ejector — Ejects the strap end cleanly after sealing.
Front Foot Bar Switch — Hands-free activation from the front of the machine.
Adjustable Table Height — Adjusts between 820mm and 920mm to fit the operator.
Specifications
5/6mm Strap 9mm Strap
Model STEP TP-702RSS Mercury Strapping Machine
Strap Width 5/6mm 9mm
Capacity Up to 65 cycles/minute
Tension Range 1–32kg
Weight 158kg
Electrical Requirements 110V / 220V / 230V / 240V — 50/60Hz — 1PH
Item Number 41190605-A55 41190609-A55
Options

— Photo-eye switch
— Rear foot bar switch
— Foot pedal switch
— Lower adjustable table height (770–820mm)
— Stainless steel frame, SUS 304 (TP-702RSS)

  • Reference41190605-A55
STEP TP-702RSS Catalog UKOpen or download document Download
